LiftMaster S50E Small-Profile Safety Edge Ends Kit — One Edge Set
LiftMaster S50E Small-Profile Safety Edge Ends Kit — One Edge Set

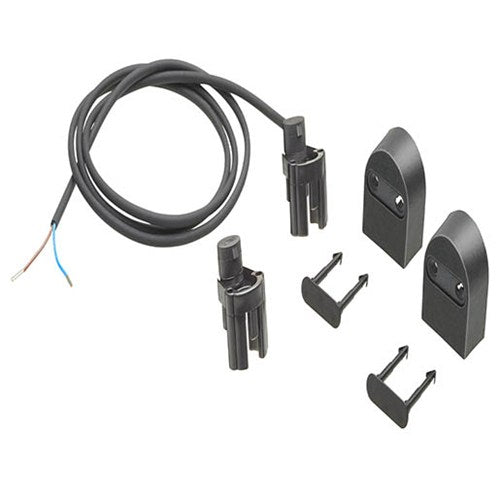

The LiftMaster S50E is the end-component kit for the compatible S50 small-profile monitored resistive safety edge. LiftMaster describes one end for the output wire and the other with the monitoring resistor. The supplier offers one set for an edge. These are functional electrical terminations, not merely decorative caps. Select them for the correct edge profile and approved monitoring arrangement; the kit does not include a complete sensing edge, mounting channel or wireless receiver.
Compatibility — Models, Versions and Exclusions
| Model or selection point | Compatibility requirement |
|---|---|
| S50 small-profile resistive edge | Use the specified edge preparation and assembly instructions. |
| L50 large-profile edge | Different profile and L50E end-kit reference; no substitution established. |
| S504AL / S505AL / S506AL assemblies | Confirm whether the repair is approved and whether their supplied ends already meet the requirement. |
| LMWEKITU wireless edge system | A separate communication system for compatible resistive edges; not included with S50E. |
| Ordinary contact-closure or optical edges | Different sensing arrangements; do not assume these ends provide compatibility. |
Preserve the Complete Monitored Edge Circuit
The output and resistor ends serve different roles. The monitored system relies on the assembled edge and correct termination, so a missing or unsuitable end is not a cosmetic defect. Have the technician identify the exact edge profile, inspect the sensing element and follow the manufacturer’s assembly instructions. Do not add a resistor to bypass a damaged or unresponsive edge.
An end-kit replacement does not automatically restore a crushed, cut or water-damaged sensing element. Check the edge along its protected length and inspect its cable and mounting channel. The finished assembly must respond wherever contact protection is required, and the operator must recognize the appropriate monitored condition. Test the complete system rather than checking only that a fault indicator has cleared.
Specifications and Product Identification
| Specification | Details |
|---|---|
| Model | S50E |
| Product type | Small-profile edge end kit |
| Intended edge family | S50 |
| End functions | Output-wire end and resistor-monitoring end |
| Supplier offer | One set for one edge |
| Manufacturer assembly feature | No glue required for the documented end system |
Before Ordering
- Confirm the edge is the supported S50 small-profile type.
- Identify whether the order requires one set or supplies for several edges.
- Inspect the sensing element, cable and mounting channel.
- Confirm the approved operator input or wireless interface and required test procedure.
Package Contents and Separate Requirements
The supplier describes one ends set for an edge, consisting of the output and monitored-resistor end functions. Confirm the current carton and included connecting pieces. A roll of S50 sensing material, aluminum or PVC channel, wireless transmitter, receiver and complete operator are separate requirements. Do not use a bulk end-cap quantity shown elsewhere in a catalog as this supplier offer’s quantity.
Safety Warnings — Read Before Installation or Service
- WARNING: Incorrect edge termination can leave a crushing or entrapment hazard. Installation and service require a qualified gate- or door-systems technician.
- Isolate power as directed before wiring, and keep the moving opening secured during assembly.
- Never bypass the monitored circuit or use termination components to conceal a failed sensing edge.
- Test contact response along the protected edge and the monitored fault response before normal operation resumes.
Related Products and Important Differences
- S504AL 4-foot small-profile edge assembly — compare a complete edge option when more than the end components need replacement.
- LMWEKITU monitored wireless edge kit — a separate communication option for compatible resistive edges and approved controls.
Frequently Asked Questions
Are both ends just protective covers?
No. LiftMaster identifies an output-wire end and a monitoring-resistor end, each with a specific system function.
Will S50E fit the large L50 profile?
No interchangeability is established. L50 uses its own L50E reference.
Does this include the sensing rubber and channel?
Those complete edge components are not promised as included in this ends-kit offer.
Can new ends repair any failed edge?
No. The sensing element, wiring, mounting and monitoring interface must be checked and the completed system tested.
Need Help Confirming the Right Product?
Contact Garage-DoorParts.com before ordering. Send the full equipment model, readable part labels and photographs of the installed assembly. Include the dimensions, electrical configuration or accessory details relevant to your project so the listing can be checked against the actual installation.
