Garage Door Spring Wire Gauges

Shop professional garage door spring wire gauges designed to quickly and accurately identify torsion spring wire size for residential and commercial garage door applications.

Correct wire diameter is one of the most important measurements when identifying or replacing a torsion spring. Even a very small difference in wire size can significantly affect spring torque, required spring length, cycle life, and overall door balance. Using a dedicated spring wire gauge helps reduce guesswork and makes it easier to match an existing spring with the correct replacement.

This collection includes wire gauges for both residential and commercial garage door spring work, including compact pocket gauges for fast field measurements and a full-range spring wire gauge for broader sizing coverage.

Available Wire Gauges

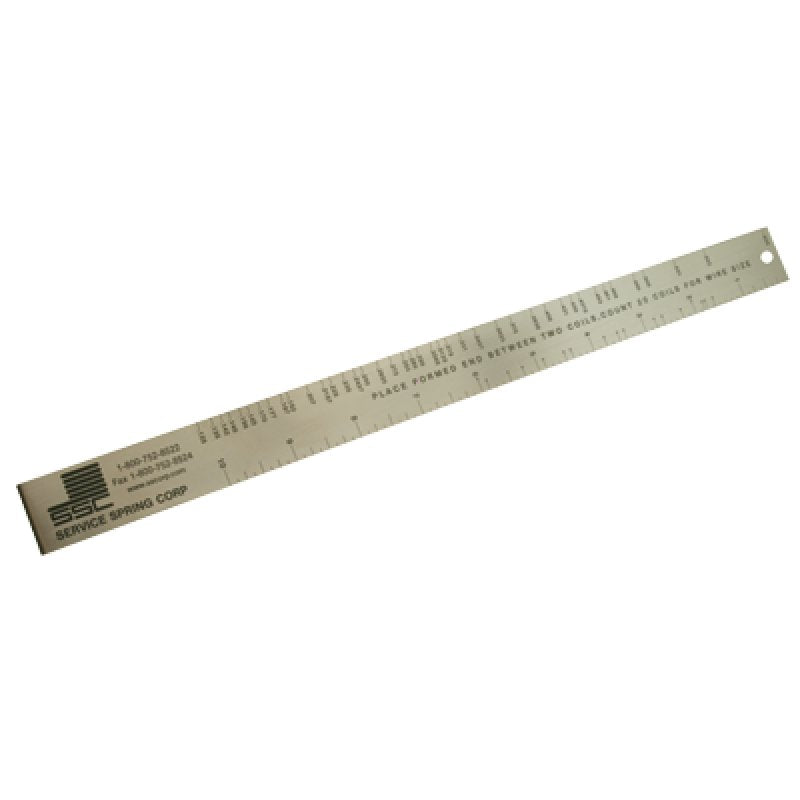

Full-Range Spring Wire Gauge

Designed for technicians who work with a wide range of residential and commercial torsion springs.

  • Measures spring wire from .125" to .625"

  • Broad residential and commercial sizing range

  • Ideal for service trucks, spring shops, and warehouses

  • Useful for identifying unknown or unmarked spring inventory

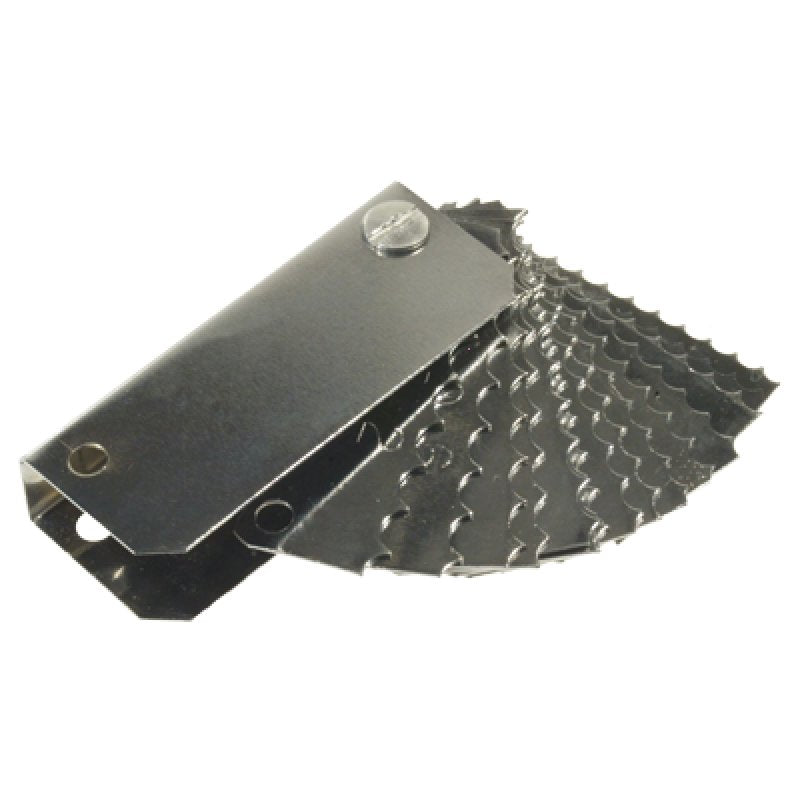

Residential Pocket Wire Gauge

A compact field tool designed specifically for common residential torsion spring wire sizes.

  • Measures wire from .1875" to .3125"

  • Pocket-size design

  • Quickly identifies residential spring wire

  • Eliminates the need to count coils and calculate wire size with a tape measure

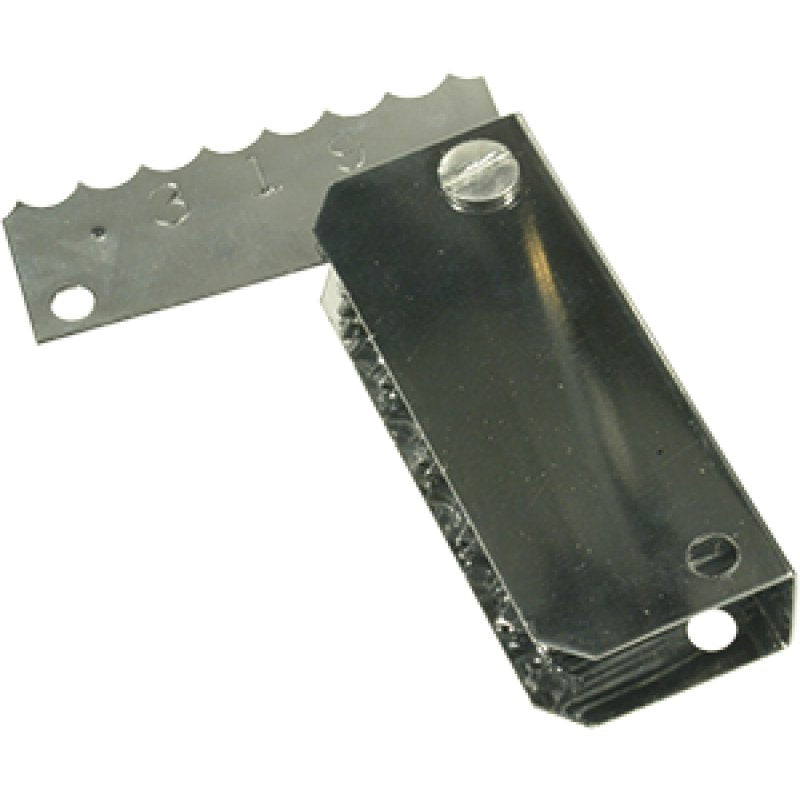

Commercial Pocket Wire Gauge

Designed for the larger wire sizes commonly found on commercial and industrial garage door torsion springs.

  • Measures wire from .3195" to .500"

  • Compact pocket-size design

  • Ideal for commercial door technicians

  • Useful for warehouses, loading doors, industrial doors, and larger sectional door systems

Why Use a Spring Wire Gauge?

Traditionally, torsion spring wire size can be determined by measuring the combined length of multiple coils and comparing that measurement to a wire-size chart.

While that method can work, it requires accurate coil counting and careful measurement.

A dedicated wire gauge provides a faster and more direct way to identify spring wire diameter, helping technicians reduce measurement errors and work more efficiently in the field.

Essential for Spring Identification

Wire diameter is only one part of identifying a garage door torsion spring.

When ordering a replacement spring, technicians should also confirm:

  • Inside diameter

  • Overall spring length

  • Wind direction

  • Number of springs

  • Door weight or required torque

  • Track and lift configuration when applicable

A wire gauge helps establish the first critical measurement, but complete spring specifications should always be verified before selecting a replacement.

For Professional Installers & DIY Spring Identification

These gauges are useful for:

  • Garage door service technicians

  • Professional installers

  • Spring fabrication shops

  • Garage door distributors

  • Maintenance departments

  • Warehouse inventory identification

  • Experienced users measuring an existing spring before ordering a replacement

Compact pocket gauges are especially convenient for technicians who need a quick spring measurement during a service call, while the wider-range gauge is ideal for shops and professionals working with many different spring sizes.

Safety

Garage door torsion springs can store significant mechanical energy.

Wire diameter can normally be measured without loosening or removing the spring. Do not loosen winding cones, set screws, cables, drums, bearing plates, or other spring-system components simply to obtain a measurement.

Spring adjustment, removal, winding, and replacement should be performed only by individuals familiar with garage door torsion systems and proper safety procedures.
