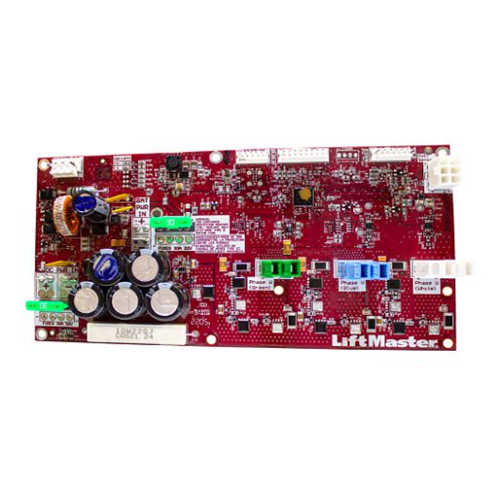

LiftMaster K41-0244-000 BLDC Power / Motor Drive Board — INSL24UL
LiftMaster K41-0244-000 BLDC Power / Motor Drive Board — INSL24UL
The LiftMaster K41-0244-000 is the brushless-DC power and motor-drive board identified for the INSL24UL industrial slide-gate operator. It is a model-specific drive component, separate from the main control board, motor and transformer. The shared IHSL24UL / INSL24UL manual lists different motor-drive references for those two operators, so a shared manual or similar industrial enclosure does not make the boards interchangeable. Match the INSL24UL model and installed revision after diagnosis of the power supply, motor connections and mechanical gate load.
Compatibility — Models, Versions and Exclusions
| Model or selection point | Compatibility requirement |
|---|---|
| INSL24UL | Listed drive-board application; verify installed revision. |
| IHSL24UL | The shared manual specifies K41-0245-000 instead. |
| HDSL24UL / HDSW24UL | Different platform references; no automatic interchangeability. |
| Main control board repair | Different component and diagnostic path. |
| Other 24V DC gate operators | Voltage and motor technology alone do not establish fit. |
Diagnose the Drive System and Preserve the Wiring Arrangement
A gate that does not start or moves incorrectly may have a supply, wiring, motor, drive or mechanical problem. The technician should evaluate those systems together before selecting the board. Binding track hardware, damaged connections or a failed motor can remain after an electronics replacement; fitting a new board without addressing the cause can leave the repair incomplete.
The industrial parts diagram distinguishes the drive board from the main control board and relay adapter. Photograph the original labels and connections before service, and use the INSL24UL wiring instructions rather than the adjacent IHSL24UL entry. Preserve the manufacturer mounting, cooling clearances and wiring arrangement. After replacement, complete the required setup and operating tests for the actual operator revision.
Specifications and Product Identification
| Specification | Details |
|---|---|
| Part number | K41-0244-000 |
| Component | BLDC power / motor-drive board |
| Documented operator | INSL24UL |
| Separate IHSL24UL drive | K41-0245-000 |
| Main control board | K41-0073-000; separate reference |
| INSL24UL motor | K41-0253-000; separate reference |
Before Ordering
- Confirm the full INSL24UL model and installed drive reference.
- Distinguish the drive fault from motor, supply and main-board problems.
- Inspect the gate mechanics and drive connections before replacement.
- Confirm the current kit contents and required post-service setup.
Package Contents and Separate Requirements
This listing identifies the K41-0244-000 power / motor-drive board service item. The main control board, motor, transformer, relay adapter, batteries and complete operator are separate components unless explicitly included in a supplier package. Verify any supplied mounting or connection pieces before ordering. A shared installation manual describes the complete operator and multiple models; it does not turn this individual board into a combined drive-system kit.
Safety Warnings — Read Before Installation or Service
- WARNING: The operator can contain hazardous electrical energy and move unexpectedly. Electrical connections and service require a qualified technician.
- Disconnect AC, solar and battery power as applicable before service; follow the manufacturer’s isolation procedure.
- Restore the specified connections and factory wire routing. Do not bypass monitored protection or improvise incompatible drive connections.
- Complete the prescribed operating checks and test travel, reversal and all required protection devices before normal use.
Related Products and Important Differences
- LMRRUL monitored photo eye — a separate protection option only where the exact operator and control revision approve it; not a universal legacy retrofit.
- LMWEKITU monitored wireless edge kit — a separate edge communication system for approved controls and resistive edges; not a replacement for this mechanical or electrical service part.
Frequently Asked Questions
Will it fit IHSL24UL?
The manufacturer lists a different IHSL24UL drive board, K41-0245-000. Do not substitute based on the shared manual.
Is this the main control board?
No. K41-0073-000 is separately identified in the operator parts list.
Is a motor included?
No combined motor package is promised by this board listing.
Can a new board correct a binding gate?
No. Mechanical faults must be corrected separately before normal operation resumes.
Need Help Confirming the Right Product?
Contact Garage-DoorParts.com before ordering. Send the full equipment model, readable part labels and photographs of the installed assembly. Include the dimensions, electrical configuration or accessory details relevant to your project so the listing can be checked against the actual installation.
