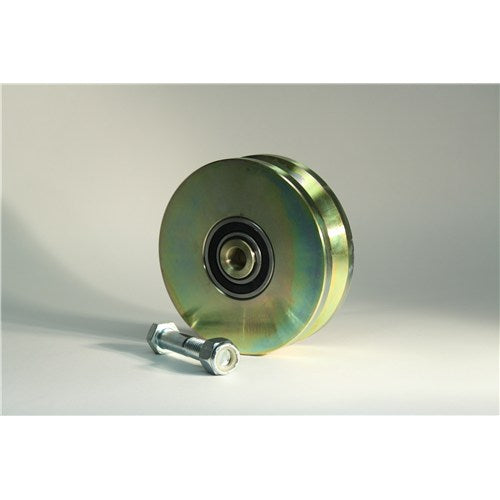

LiftMaster AH110 6-Inch Steel V-Groove Power Wheel — Single, Gold Zinc-Plated
LiftMaster AH110 6-Inch Steel V-Groove Power Wheel — Single, Gold Zinc-Plated
The LiftMaster AH110 is a single 6-inch steel V-groove wheel with ball bearings and a gold zinc-plated finish for an appropriate sliding-gate track arrangement. LiftMaster’s accessory guide identifies it for gates up to 5,000 pounds, subject to correct wheel selection and a suitable complete installation. This offer contains one wheel, not the pair supplied under the smaller AH107 reference. Confirm the track profile, axle fit, mounting clearance and load arrangement before replacing an existing wheel.
Compatibility — Models, Versions and Exclusions
| Model or selection point | Compatibility requirement |
|---|---|
| V-track sliding gates | Track profile, axle dimensions, mounting and load arrangement must match. |
| AH107 | A different offer: two 4-inch gold-zinc wheels, with a different published gate rating. |
| HT5000V | A separate 6-inch heat-treated silver-zinc wheel; do not apply its heat-treatment claim to AH110. |
| Cantilever gates and flat tracks | Different support arrangements; no interchangeable use is established. |
Evaluate the Wheel and Track as a Complete Support System
The wheel must seat correctly on the track and rotate without interference in its mounting. A larger diameter is not automatically an upgrade: it can change clearance and the gate’s installed height. Check the existing bracket, axle and neighboring hardware before ordering. Do not infer axle dimensions or bearing fit from the six-inch diameter alone.
If the gate is hard to move, inspect the track for damage, debris and alignment problems as well as checking the wheels. A damaged support bracket or distorted gate frame can continue to cause trouble after a wheel is replaced. The published gate-weight figure does not certify the strength of the frame, track, foundations or the distribution of load across the installed wheels.
Specifications and Product Identification
| Specification | Details |
|---|---|
| Model | AH110 |
| Wheel diameter | 6 inches |
| Wheel profile | V-groove |
| Construction | Solid steel with ball bearings |
| Finish | Gold zinc plating |
| Quantity | One wheel |
| Manufacturer application rating | Gates up to 5,000 lb in an appropriate installation |
| Track guidance | Manufacturer guide describes 1-inch or larger angle tracks; verify actual geometry |
Before Ordering
- Confirm that the required item is one AH110 wheel rather than a pair.
- Measure the existing wheel diameter, axle fit and available mounting clearance.
- Have the track profile, alignment and support structure inspected.
- Identify the gate weight and the intended wheel arrangement before selecting replacement hardware.
Package Contents and Separate Requirements
The supplier identifies one AH110 wheel. An axle, mounting bracket, track, gate frame or complete wheel carriage should not be assumed included. Confirm any separately required hardware before purchase. If several wheels support the gate, have the installer assess their condition together and determine the appropriate repair instead of assuming only the visibly damaged wheel needs attention.
Safety Warnings — Read Before Installation or Service
- WARNING: A heavy gate can fall, roll or derail during wheel replacement. Have a qualified gate professional support and secure it before removing load-bearing hardware.
- Isolate an automated gate’s power and prevent movement throughout the repair.
- Do not operate with damaged track, loose axles or unsuitable wheel mounting. Keep hands clear of the wheel-to-track pinch point.
- After repair, verify smooth manual travel and test the automated gate’s required protection devices before returning it to normal use.
Related Products and Important Differences
- LMRRUL monitored photo eye — a separate safety option for approved automated-gate controls; it does not support or guide the gate.
- LMWEKITU monitored wireless edge kit — a separate connection system for approved resistive edges; wheel replacement does not remove the need for protection.
Frequently Asked Questions
Is AH110 sold as a pair?
No. This offer is a single 6-inch wheel. AH107 is a different pair of smaller wheels.
Is the gold wheel the heat-treated version?
The manufacturer guide distinguishes gold-zinc AH110 from heat-treated silver-zinc HT5000V. Do not merge their specifications.
Will any six-inch V-groove wheel fit?
No. Axle fit, groove geometry, clearance, load and the mounting arrangement must also match.
Will a replacement wheel fix a bent track?
No. Track and structural defects require correction as part of the repair.
