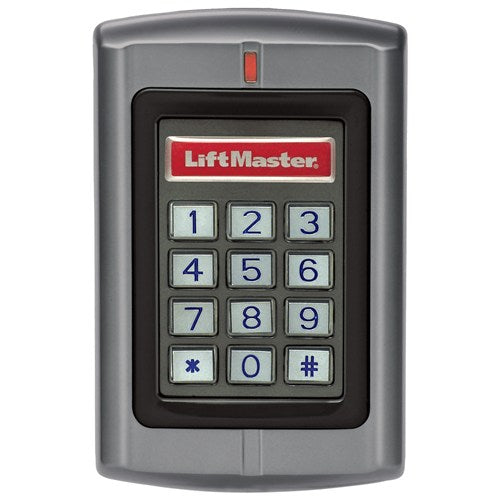

LiftMaster KPR2000 Wired Keypad and Proximity Reader — Up to 2,000 Users

The LiftMaster KPR2000 is a wired access controller combining a numeric keypad and proximity-card reader for a single entry. It supports up to 2,000 users and offers card, PIN and combined credential configurations. Its wired control interface makes it a different purchasing choice from a wireless garage-door keypad. Match the credential format, power supply, operating mode and gate or door control interface before ordering so the reader can be integrated into the intended access system.

Compatibility — Models, Versions and Exclusions

Choose the Credential and Control Arrangement First

A keypad and card reader should be selected around how users will gain access. Decide whether users need cards, PINs or a combined process, and identify who will manage enrollment and remove credentials. If an existing credential system is being retained, verify its format before buying a new reader. Similar-looking cards can use different technologies.

The power required by the reader is separate from the power or switching requirements of a lock or operator. Do not assume an accessory terminal can supply every connected device. Have the installer verify the power budget and the control arrangement for the complete entry. The reader authorizes an access request; it does not provide a gate’s obstruction sensing or entrapment protection.

Specifications and Product Identification

Before Ordering

• Confirm the required credential format and approximate number of users.
• Identify standalone versus connection to another access-control system.
• Select the correct supply and mounting arrangement for the location.
• Plan secure credential administration and confirm safe gate or door behavior after an access command.

Package Contents and Separate Requirements

The manufacturer inventory lists the keypad/reader, manager add and delete cards, installation hardware, a security driver and a protection diode. A suitable power supply is a separate accessory; the supplier specifically notes that its 12V DC, 2A supply is not included. Confirm user-card quantities and any pedestal or adapter separately.

Safety Warnings — Read Before Installation or Service

• WARNING: A valid access credential can initiate movement of a heavy gate or door. Position controls so users remain outside the hazardous travel area.
• A qualified installer should isolate power before wiring and verify the supply and output requirements for every connected device.
• Do not use the keypad relay to bypass safety controls or required release arrangements.
• Test authorized entry, denied access and the completed system’s safe operation before handover. Protect administrative credentials and remove access that is no longer authorized.

Related Products and Important Differences

• KPW250 wireless commercial keypad — compare when the project calls for a compatible radio-based access solution instead of this wired reader.
• LMRRUL monitored photo eye — a separate safety component for approved operator systems; it does not perform card or PIN authorization.

Frequently Asked Questions

Is this a wireless garage-door keypad?

No. KPR2000 is a wired keypad and proximity-reader controller. It requires the appropriate power and control wiring.

Will my existing cards work?

Only if their technology and format match the supported reader configuration. Verify before ordering or enrolling a large credential set.

Are the power supply and user cards included?

The power supply is separate. Confirm the current offer’s credential inventory; manager cards are different from a bulk set of user credentials.

Can it replace a safety photo eye?

No. Access authorization and obstruction detection have different functions. The gate or door still needs its required safety devices.
